Description:

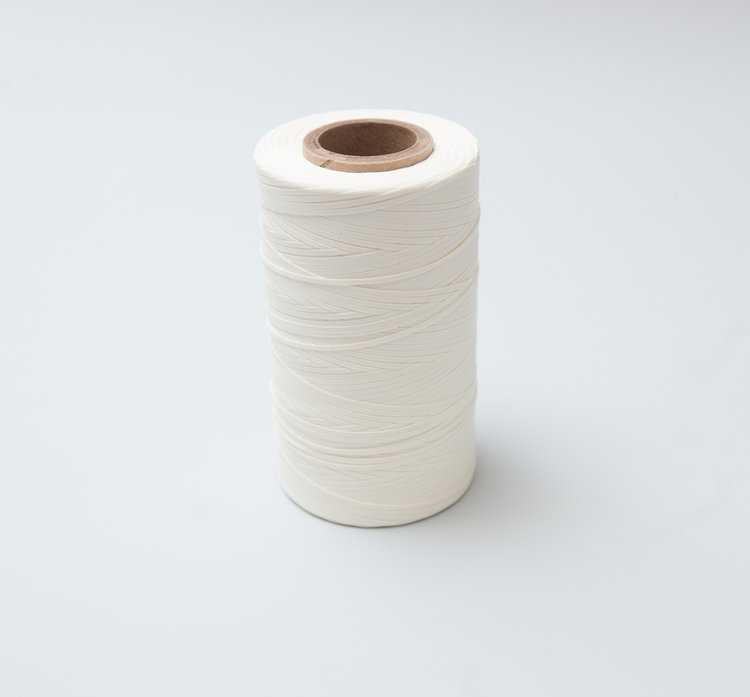

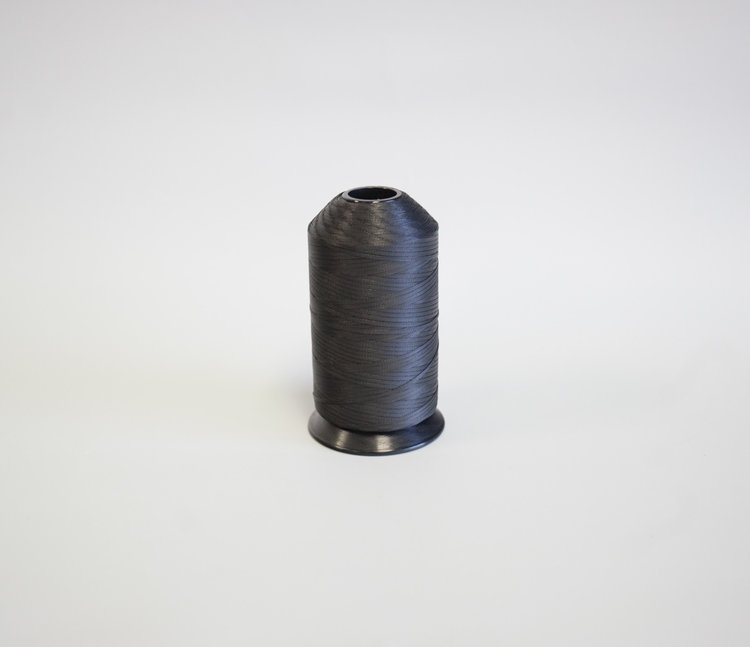

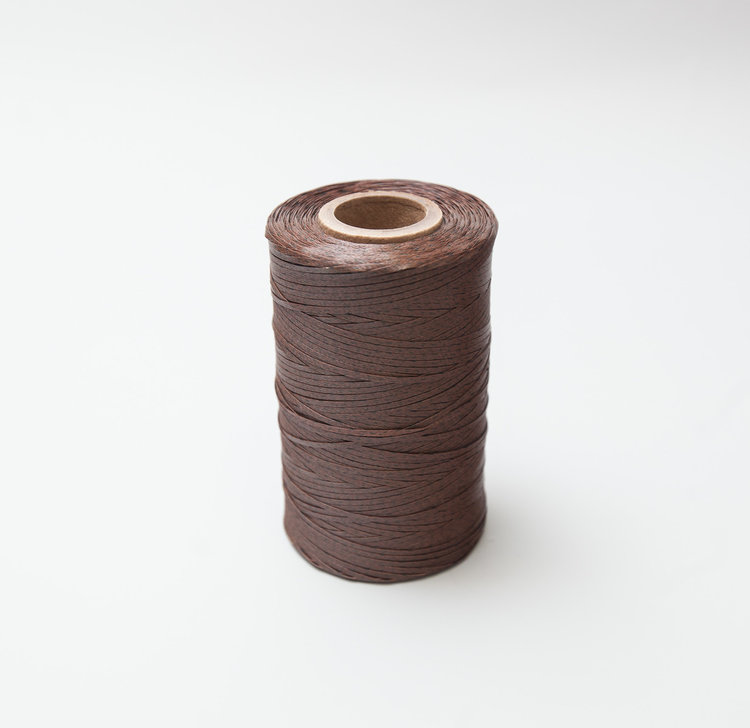

(Formerly MIL-T-43435 Type I) Flat braid manufactured from high tenacity, continuous filament nylon yarn. Available with a variety of finishes.
Standard Colors: Natural or Black (other colors available – minimum dye lots)
Temperature Range: -67°F to 250°F (-55°C to 121 °C)
Mil Spec Size: 1 Width .180 – .220″ Thickness .013 – .019″ Spool Size: 250 yd
Mil Spec A-A-52080-A-1 101 -1 No Finish A
Mil Spec A-A-52080-B-1 101-2 Microcrystalline Wax
Mil Spec A-A-52080-C-1 101-3 Synthetic Rubber or Elastomer C
Mil Spec A-A-52080-C-1 101-5 Vinyl E
Mil Spec A-A-52080-G-1 101-7 Liquid Nylon G
________________________________________________________
Mil Spec Size: 2 Width .099 – .121″ Thickness .012 – .018″ Spool Size: 250 yd
Mil Spec A-A-52080-A-2 102-1 No Finish A
Mil Spec A-A-52080-B-2 102-2 Microcrystalline Wax B
Mil Spec A-A-52080-C-2 102-3 Synthetic Rubber or Elastomer C
Mil Spec A-A-52080-E-2 102-5 Vinyl E
Mil Spec A-A-52080-G-2 102-7 Liquid Nylon G
_______________________________________________________
Mil Spec Size: 3 Width .077 – .094″ Thickness .011 – .017″ Spool Size: 500 yd
Mil Spec A-A-52080-A-3 103-1 No Finish A
Mil Spec A-A-52080-B-3 103-2 Microcrystalline Wax B
Mil Spec A-A-52080-C-3 103-3 Synthetic Rubber or Elastomer C
Mil Spec A-A-52080-E-3 103-5 Vinyl E
Mil Spec A-A-52080-G-3 103-7 Liquid Nylon G
_______________________________________________________
Mil Spec Size: 4 Width .054 – .066″ Thickness .009 – .015″ Spool Size: 500 yd
Mil Spec A-A-52080-A-4 104-1 No Finish A
Mil Spec A-A-52080-B-4 104-2 Microcrystalline Wax B
Mil Spec A-A-52080-C-4 104-3 Synthetic Rubber or Elastomer C
Mil Spec A-A-52080-E-4 104-5 Vinyl E
Mil Spec A-A-52080-G-4 104-7 Liquid Nylon G
_______________________________________________________
Mil Spec Size: 5 Width .045 – .055″ Thickness .006 – .014″ Spool Size: 500 yd
Mil Spec A-A-52080-A-5 105-1 No Finish A
Mil Spec A-A-52080-B-5 105-2 Microcrystalline Wax B
Mil Spec A-A-52080-C-5 105-3 Synthetic Rubber or Elastomer C
Mil Spec A-A-52080-E-5 105-5 Vinyl E
Mil Spec A-A-52080-G-5 105-7 Liquid Nylon G
_______________________________________________________
Mil Spec Size: 6 Width .056 – .068″ Thickness .005 – .011″ Spool Size: 500 yd
106-1 No Finish A
106-2 Microcrystalline Wax B
106-3 Synthetic Rubber or Elastomer C
_______________________________________________________
Mil Spec Size: 7 Width .029 – .035″ Thickness .001” – .009” Spool Size: 500 yd
107-1 No Finish A
107-2 Microcrystalline Wax B
107-3 Synthetic Rubber or Elastomer C
